Product Details
  • Product Thumb Img

Grundfos 92603114 High-Efficiency Circulator Pump, 17 gpm Flow Rate, 3/4 in NPT Inlet 3/4 in NPT Outlet, 115 V, 1 pH

Login for Price & Availability

Price:
List Price:

DESCRIPTION

The ALPHA Comfort System is a high-efficiency circulator fitted with a stainless-steel housing. It is built with an ECM (Electronically Commutated Motor) for maximum performance . It is designed to circulate domestic hot water in systems without a dedicated return line. The Comfort System has a thermally actuated valve connecting the hot water line to the cold at the farthest fixture, eliminating the need for a dedicated return line. When the pump is in AUTOADAPT, it will shut down when the valve warms up and closes, eliminating the need for an aquastat. This small, compact hot water circulation pump provides instant hot water to the homeowner and fits with tank and tankless water heaters. The ALPHA Comfort System meets the energy conservation standards for circulator pumps the Department of Energy established, which will take effect in May 2028

SPECIFICATIONS

Amperage Rating     :     0.71 A

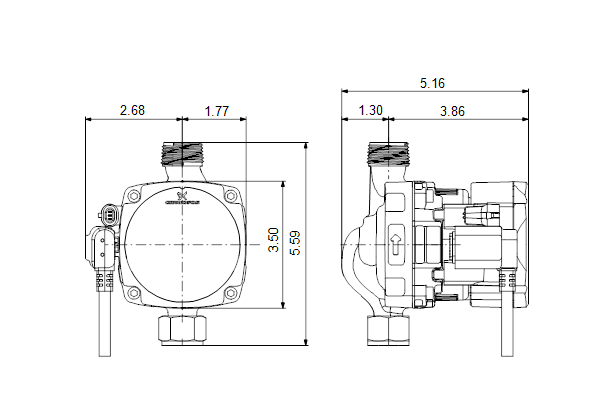

Dimensions     :     5.6 in H x 5.2 in L
Flow Rate     :     17 gpm
Frequency Rating     :     60 Hz
Impeller Type     :     Composite
Inlet Size     :     3/4 in NPT
Maximum Head     :     18.05 ft
Maximum Pressure     :     3.4 psi
Outlet Size     :     3/4 in NPT
Phase     :     1 pH
Power Rating     :     38 W
Temperature Rating     :     36 to 203 deg F
Type     :     High-Efficiency
Voltage Rating     :     115 V

FEATURES

  • High-efficiency hot water circulator for homes without dedicated return lines
  • Circulator system comes with built-in temperature control, eliminating the need for an external aquastat
  • Dry-run protection stops the pump if water is not detected in the system
  • Built-in digital seven-day timer makes it possible to schedule the pumps on/off hours, helping save energy when hot water is not required in the home
  • High-efficiency platform with a permanent magnet ECM technology that helps reduce energy consumption by 80% or more
  • AUTOADAPT functionality maintains temperature and prevents the pump from operating once hot water reaches the farthest Comfort Valve
  • Maintains one of the highest Energy Ratings in the market (193) based on the Hydraulic Institute Energy Rating
  • Bluetooth connectivity for easy pump control and operational trend data
  • Guided setup for easy mode and setting selections
